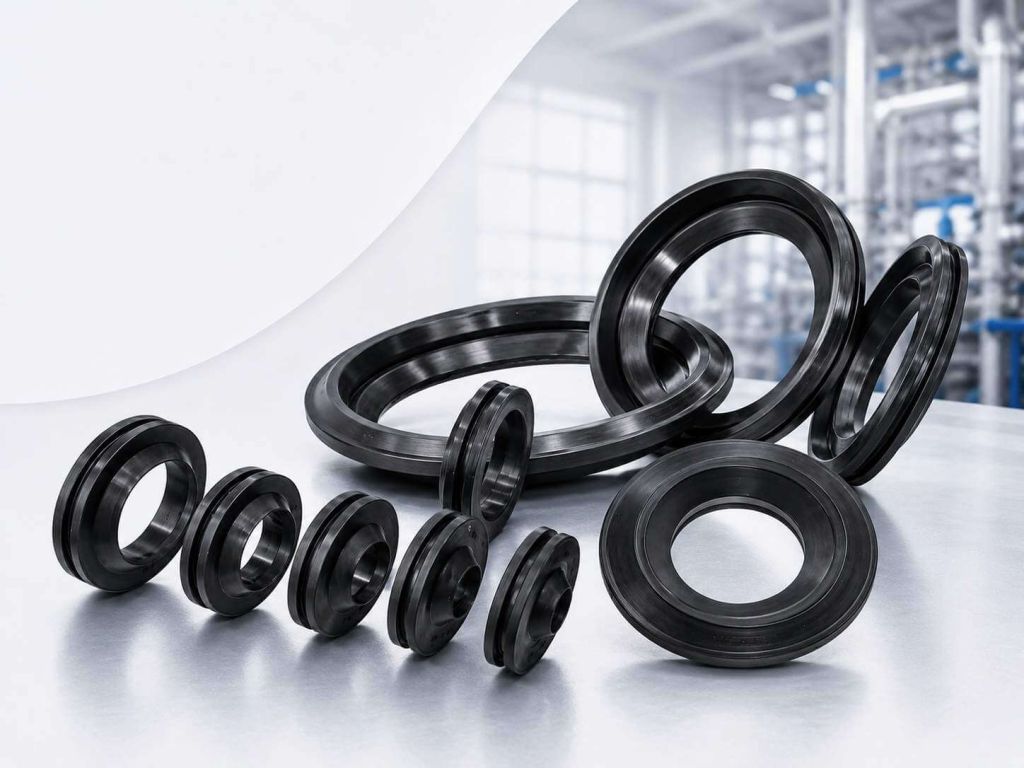

Pipe and Wall Grommets

Flexible, watertight pipe penetrations for plastic chambers, tanks and fabricated utility structures.

Request a Technical Quote Contact Our Team

Overview

Designed by people who also install them

When we designed our vulcanized wall grommets, the starting point was the practical need of contractors and operators. We are active users ourselves — in our own water-meter pits and plastic tanks — so we developed solutions that are flexible, durable and genuinely easy to handle during installation.

The grommet creates a resilient interface between the pipe and the wall opening, providing long-term reliable sealing and mechanical protection at pipe and cable penetrations. Correct fit depends on the pipe outside diameter, the wall thickness and the geometry of the fabricated structure.

Standard sizes are available across a broad range and special configurations can be produced when the wall or pipe dimensions fall outside the normal catalogue.

Key capabilities

Size range DN25 to DN400
Versions optimised for several wall-thickness ranges
For KPE/PE, PP and PVC pipe penetrations
Sealing lip prevents water passing back along the pipe
Custom sizes and profiles possible

How it seals

A sealing lip, not just a rubber ring

The grommet carries a closing sealing lip that presses against the inserted plastic pipe and does not let water pass back along it. At the same time it produces a drip-free seal, creating a flexible but watertight connection between the tank and the pipes entering it.

We manufacture the grommets to match the most common wall thicknesses. In DN50, for example, versions optimised for 4–6 mm, 7–10 mm and 9–12 mm walls are available. Accurate sizing gives a precise fit, reduces the risk of leakage and displacement, and contributes to the long-term operational safety of the structure.

Application limits — please check these

For straight or slightly curved shell surfaces
For pipe connections perpendicular to the wall
Where only gravity-derived pressure is present
Sized to the actual wall thickness, not a nominal value

Sizes

Wall-thickness versions, using DN50 as an example

The full range covers DN25 to DN400. For each nominal size we produce the versions that match the wall thicknesses actually used in fabricated structures — the example below shows the principle.

Nominal size	Wall-thickness versions	Typical use
DN50	4–6 mm / 7–10 mm / 9–12 mm	Water-meter pit and tank penetrations
DN25–DN400	Matched to the fabricated wall	KPE/PE, PP and PVC pipe entries
Custom	On request	Non-standard wall or pipe dimensions

The exact pipe outside diameter and the measured wall thickness are what we need to select the right version — nominal size alone is not enough.

Selection & quotation

Information needed for selection and quotation

The more precise the input, the faster and more reliable our technical answer. For non-standard requirements, a drawing or a physical sample is the best starting point.

Exact pipe outside diameter
Pipe material
Wall material and measured wall thickness
Straight or curved wall surface
Pressure condition
Quantity

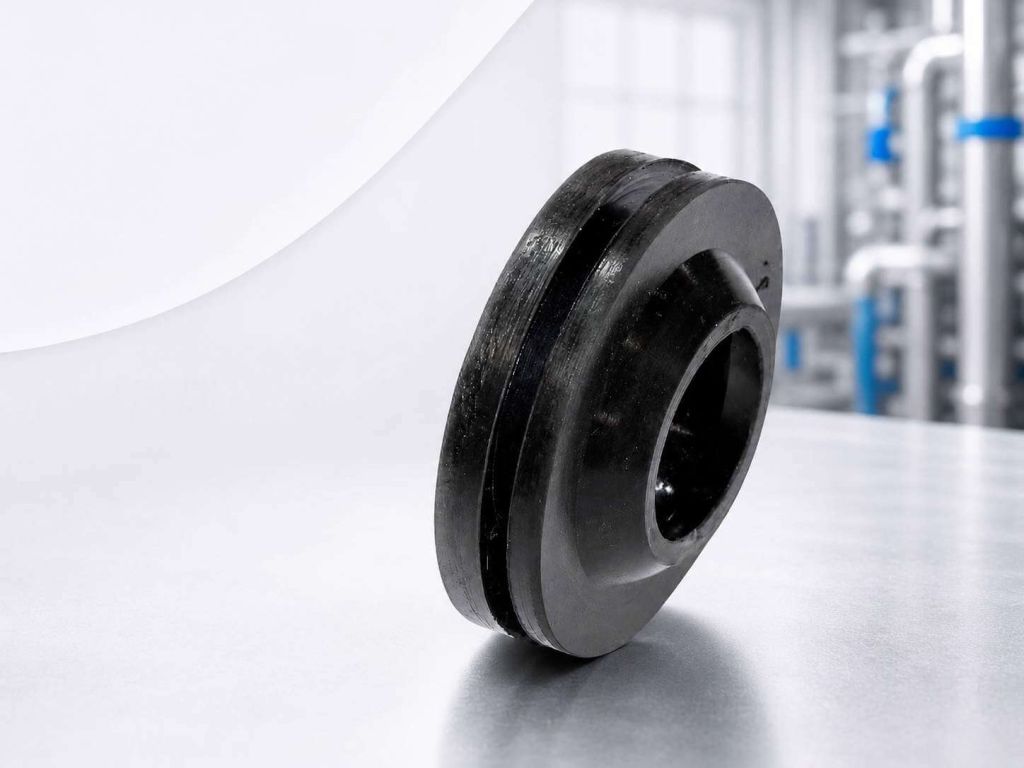

Vulcanized Rubber Grommet (Pipe Sleeve)
Wall thickness	4 – 6 mm	7 – 10 mm	9 – 12 mm
DN20	✓	✓
DN25	✓	✓	✓
DN32	✓	✓	✓
DN40	✓	✓	✓
DN50	✓	✓	✓
DN63	✓	✓	✓
DN75			✓
DN90	✓	✓	✓
DN110	✓	✓	✓
DN125	✓	✓	✓
DN160	✓	✓	✓
DN200	✓	✓	✓
DN225	✓	✓	✓
DN250	✓	✓	✓
DN315		✓	✓
DN400		✓	✓

From the manufacturer

We are users of these ourselves

When designing our vulcanized pipe-penetration rubber rings, the practical needs of contractors and operators were the primary consideration. We are active users ourselves (in water meter pits and plastic tanks), so we developed solutions that are flexible, durable and easy to handle during installation. Individually vulcanized penetration seals provide reliable sealing and mechanical protection at pipe and cable penetrations over the long term.

KPE/PP/PVC plastic pipe-penetration rubber rings for chamber-wall and tank-wall pipe connections. For perpendicular pipe connections into flat or slightly curved surfaces, where only the pressure arising from gravity is present.

The penetration ring has a sealing lip that does not let water pass back alongside the plastic pipe inserted into it. At the same time it provides drip-free tightness: a flexible but watertight connection is created between the tank and the pipes entering it.

We manufacture wall-penetration rings matched to the most common wall thicknesses: in DN50, for example, versions optimised for 4–6 mm, 7–10 mm and 9–12 mm wall thickness are available. Correct sizing ensures an accurate fit, reduces the risk of leakage and displacement, and contributes to the long-term reliability of the structure. Our products are available in the DN20–DN400 size range, and for individual requirements we also produce special designs.

The flexibility of the rubber makes placement easier, and thanks to individual vulcanizing the structure is strong, pushing out the maintenance interval over the long term.

Are you a contractor, working in construction? If we have caught your interest, we look forward to hearing from you.

FAQ

Frequently asked questions

Cannot find your answer? Send us the technical details and we will review the application.

Can the grommet be used in a curved tank wall?

Slightly curved fabricated walls can be used, but the geometry must be confirmed before manufacturing.

What wall thicknesses are available?

Versions exist for ranges such as 4–6 mm, 7–10 mm and 9–12 mm for selected sizes.

Is it suitable for pressurised lines?

It is designed for penetrations where only gravity-derived pressure is present. For pressurised connections a different solution is required.

Are custom diameters possible?

Yes, subject to tooling and technical review.
