Vulcanized Strainer Flange Gaskets
A compact sealing and filtration point for protecting downstream equipment from network debris.
Overview
Sealing and debris protection in a single flange element
The built-in stainless strainer insert stops foreign material entering the network — gravel, sand, sludge or plant debris — from damaging water meters, pumps and other sensitive fittings. It is effective protection for both new and existing systems, up to DN600, and a chemical-resistant version is also available.
The concept is useful in new installations and as a retrofit protection point where there is no space for a separate pipeline strainer. The correct mesh, material and acceptable pressure loss must be considered for the actual flow conditions.
A correctly specified vulcanized gasket adapts to the manufacturing tolerances of pipes, flanges and fittings while resisting pressure fluctuation, temperature change and loads from ground movement. That matters especially in distribution networks, chambers, water-meter assemblies and industrial connections.
Key capabilities
- Manufactured range up to DN600
- Stainless steel strainer insert
- General chemical-resistant compound versions available
- Protects water meters, pumps and sensitive fittings
- Suitable for new installations and retrofit protection
Where it is installed
One flange, two jobs
The strainer gasket sits in an existing flange joint, so it needs no additional pipe length, no extra chamber space and no separate support. In practice it is fitted directly upstream of the component that must be protected — most often a water meter, a pump or a control valve.
Because it is a gasket first, the same compound rules apply as for our standard flange gaskets: the elastomer is chosen for the medium, the temperature and the chemical exposure. The mesh is chosen for the type and quantity of debris expected in that section of the network.
Typical installation points
- Upstream of water meters to protect the measuring element
- Before pumps and control valves
- In commissioning and after network repair, when debris load is highest
- Where there is no room for a full-size pipeline strainer
Selection & quotation
Information needed for selection and quotation
The more precise the input, the faster and more reliable our technical answer. For non-standard requirements, a drawing or a physical sample is the best starting point.
- DN and flange standard
- Required mesh / expected debris type
- Flow and pressure conditions
- Medium and temperature
- Available installation space
From the manufacturer
It stops what should never reach the meter
The built-in stainless steel strainer insert prevents foreign matter entering the network — gravel, sand, silt or plant debris — from damaging water meters, pumps and other sensitive fittings. Effective protection for new and existing systems alike, up to DN600, and available in chemical-resistant versions as well.
A correctly selected and manufactured vulcanized gasket adapts to the manufacturing tolerances of pipes, flanges and fittings, while resisting pressure fluctuation, temperature change and the loads caused by ground movement. That matters most in distribution networks, chambers, water-meter assemblies and industrial connections.

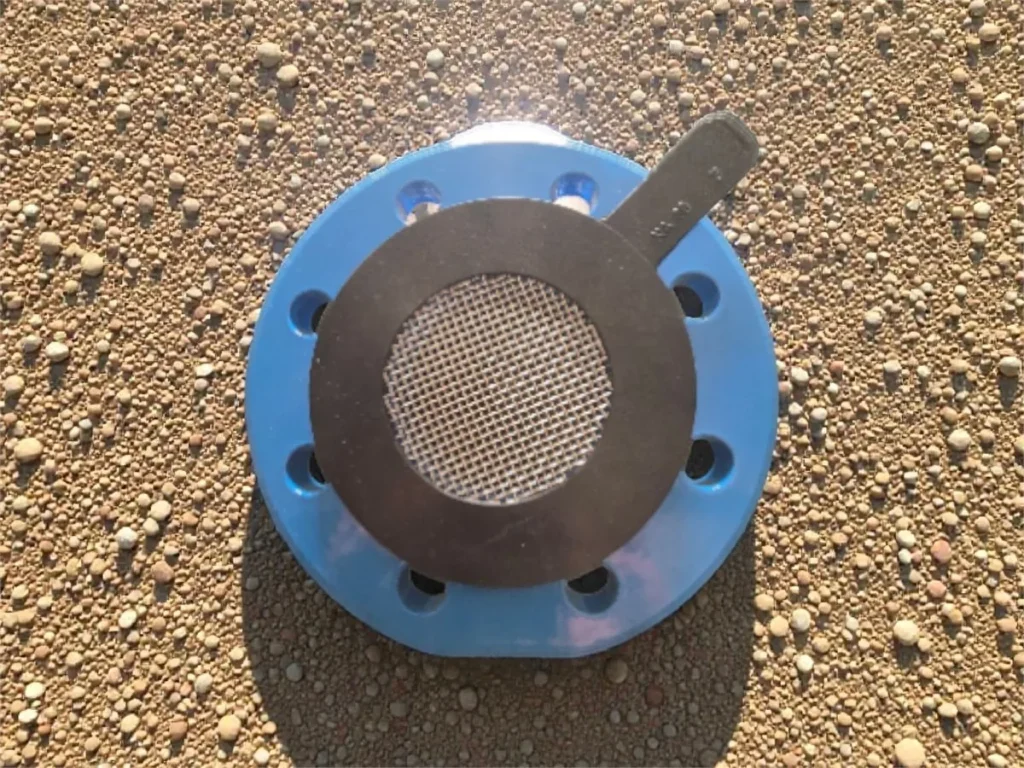

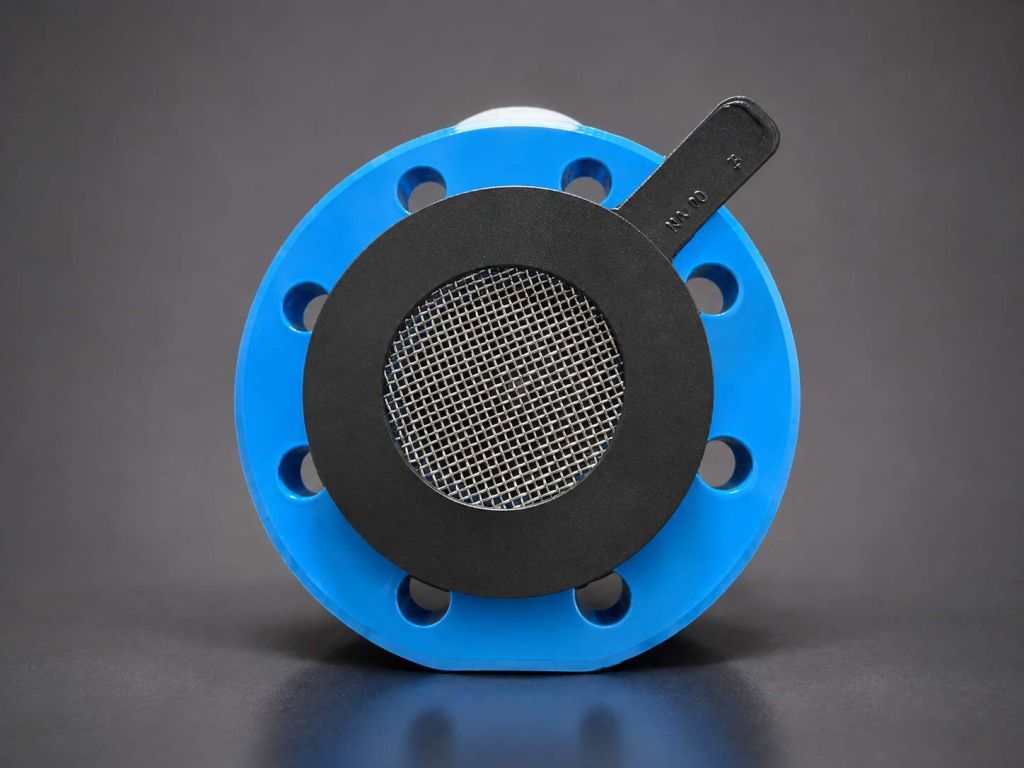

Stainless mesh vulcanized into the gasket

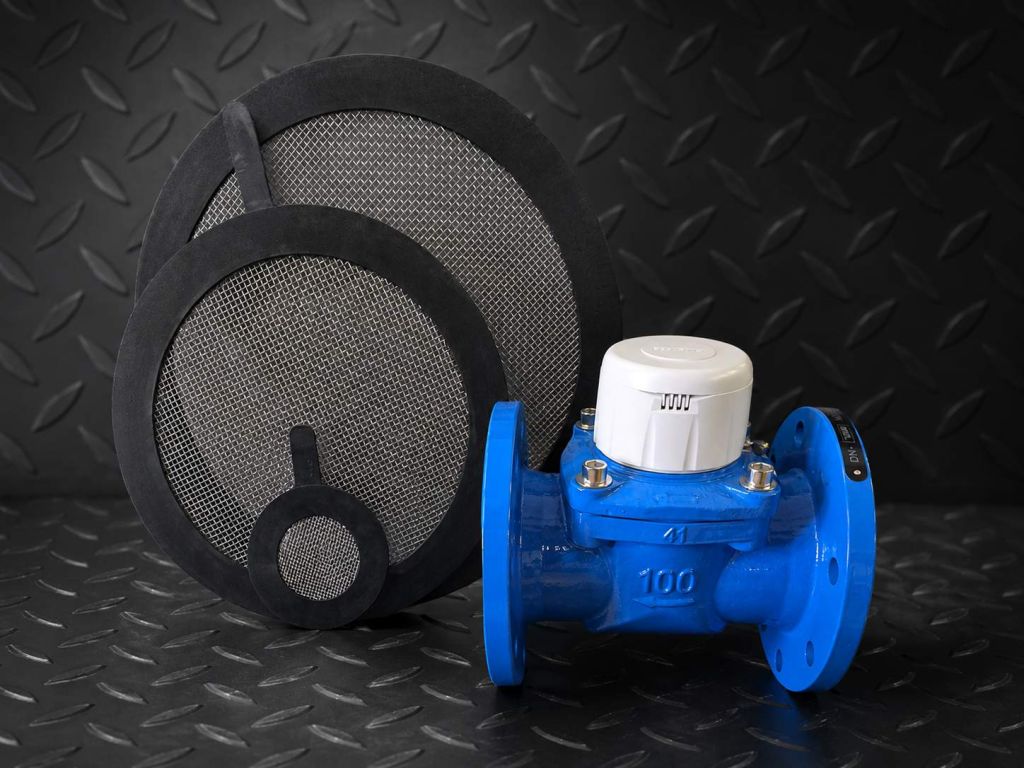

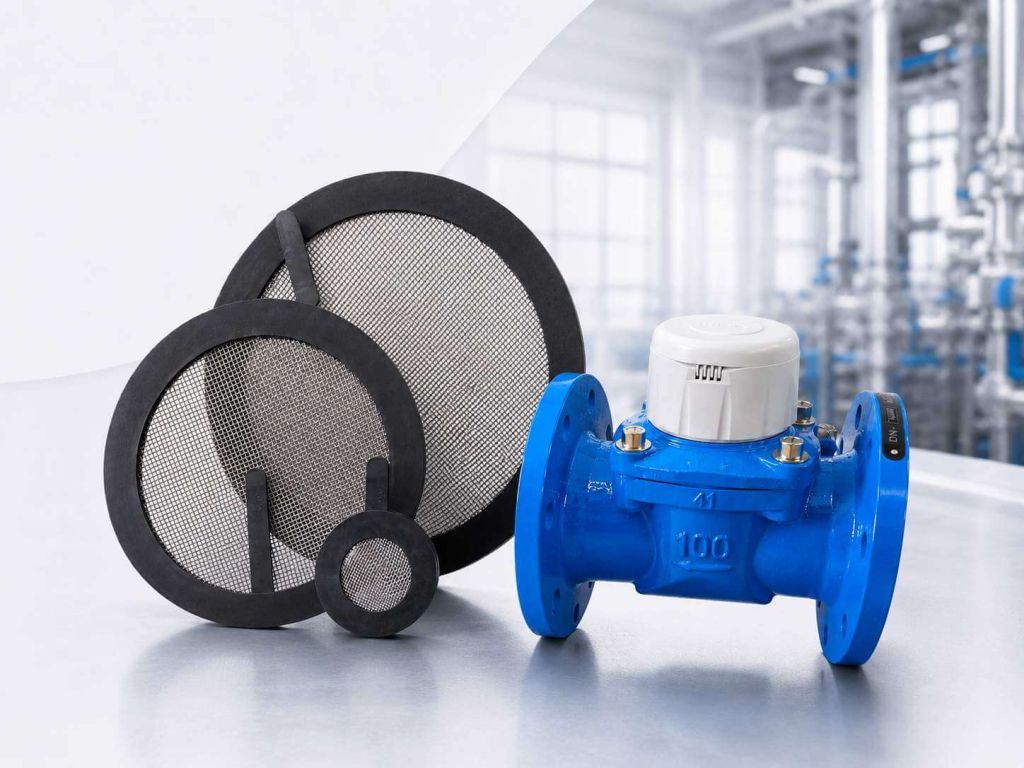

Fitted ahead of the meter, in the same joint
Interested in the extra protection? Get in touch.
FAQ
Frequently asked questions
Cannot find your answer? Send us the technical details and we will review the application.
Can a strainer gasket replace a full-size pipeline strainer?
Not in every application. Hydraulic requirements and debris load must be evaluated for the specific installation.
What sizes are available?
The manufactured range runs up to DN600.
Can you provide chemical-resistant versions?
Yes. Selected compound options can be discussed based on the medium and temperature.
Does it increase pressure loss?
Any screen adds some pressure loss. The mesh is selected so that the protection is effective without disturbing the flow conditions of that pipeline section.
Related products and information
Interested in the extra protection?
We will review the application and confirm the most suitable next step.
